Product Details:

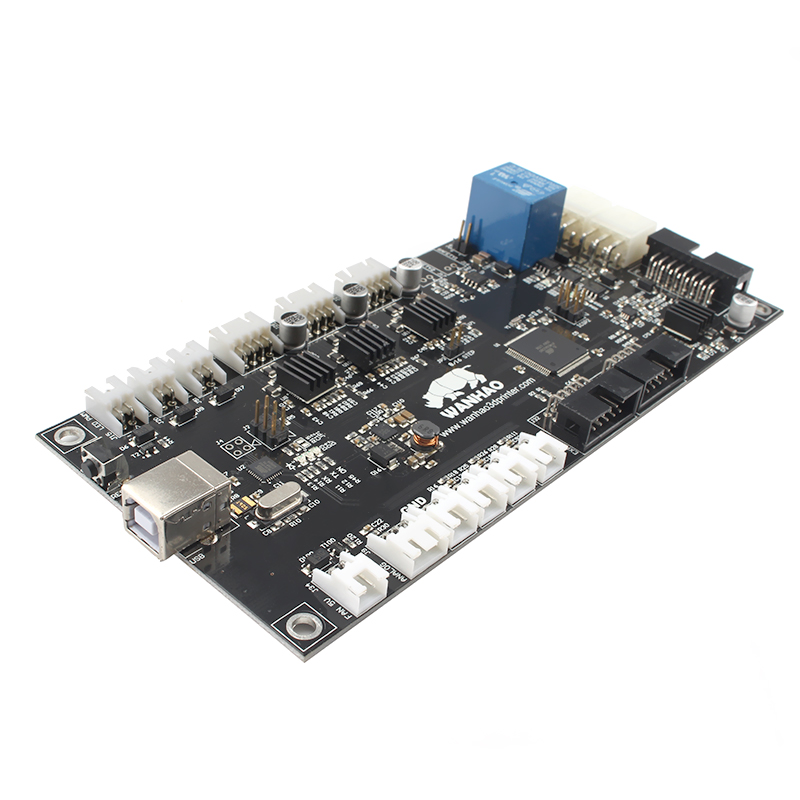

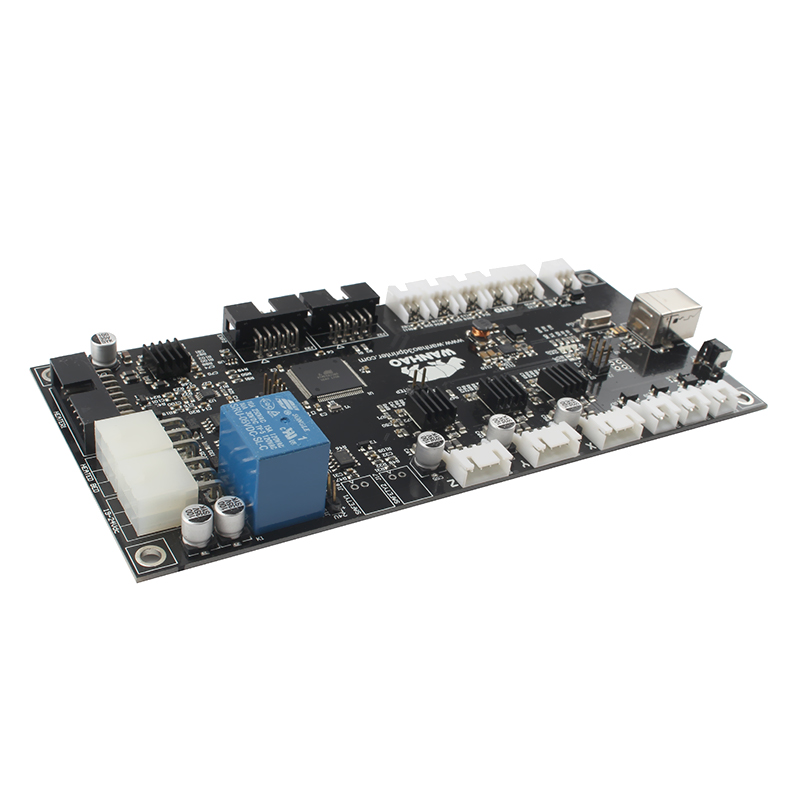

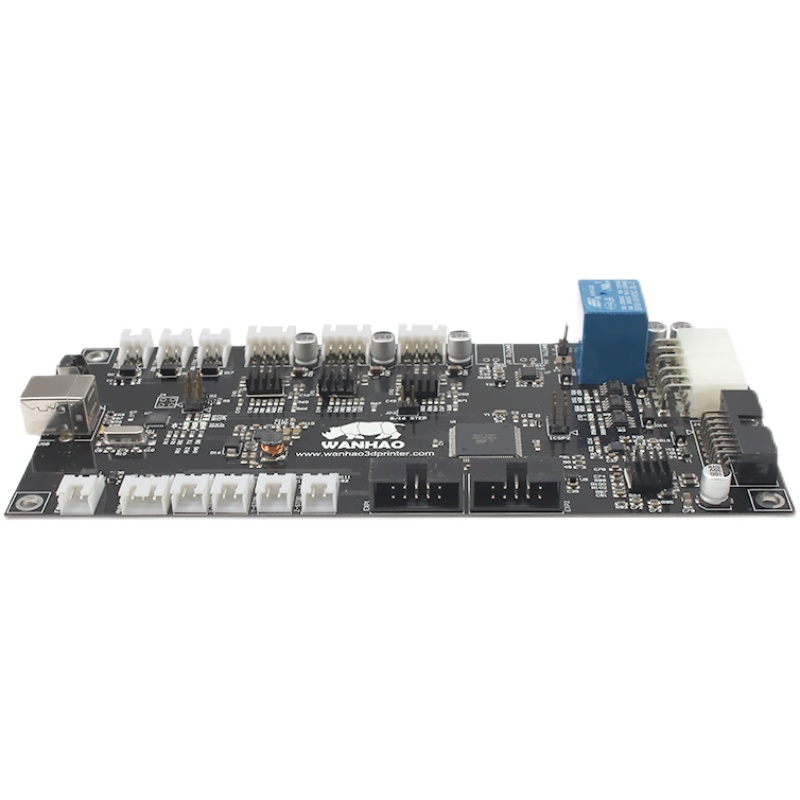

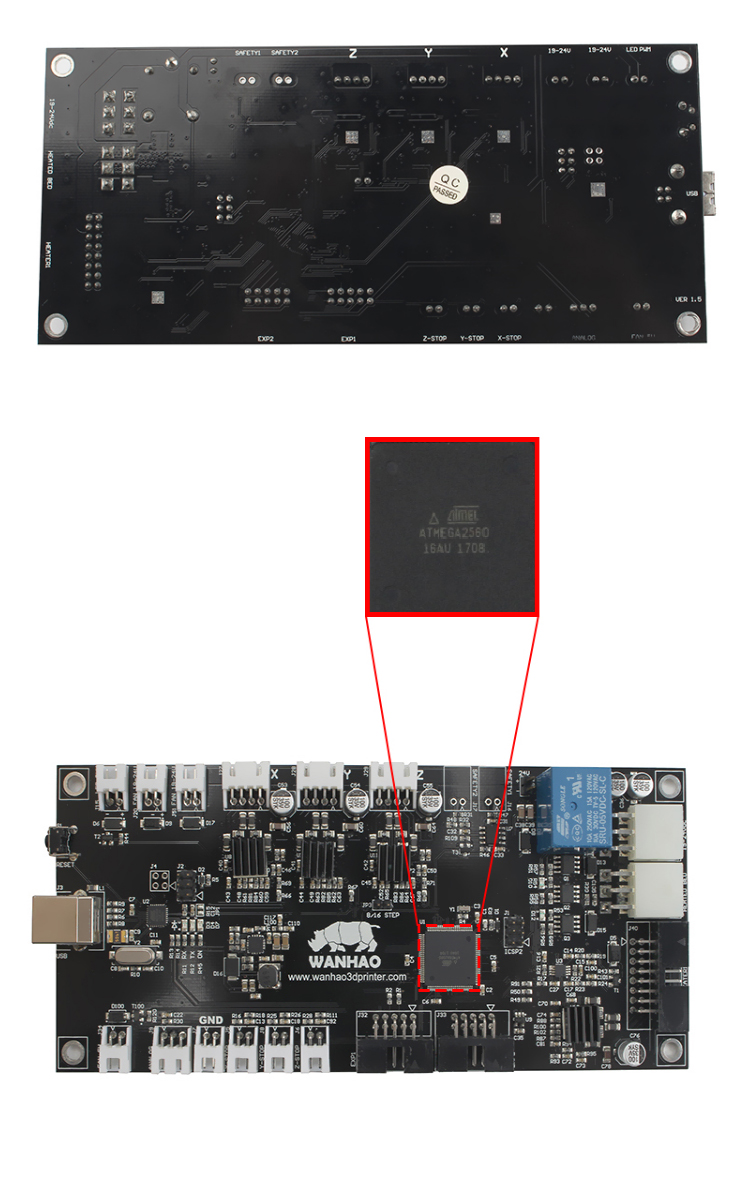

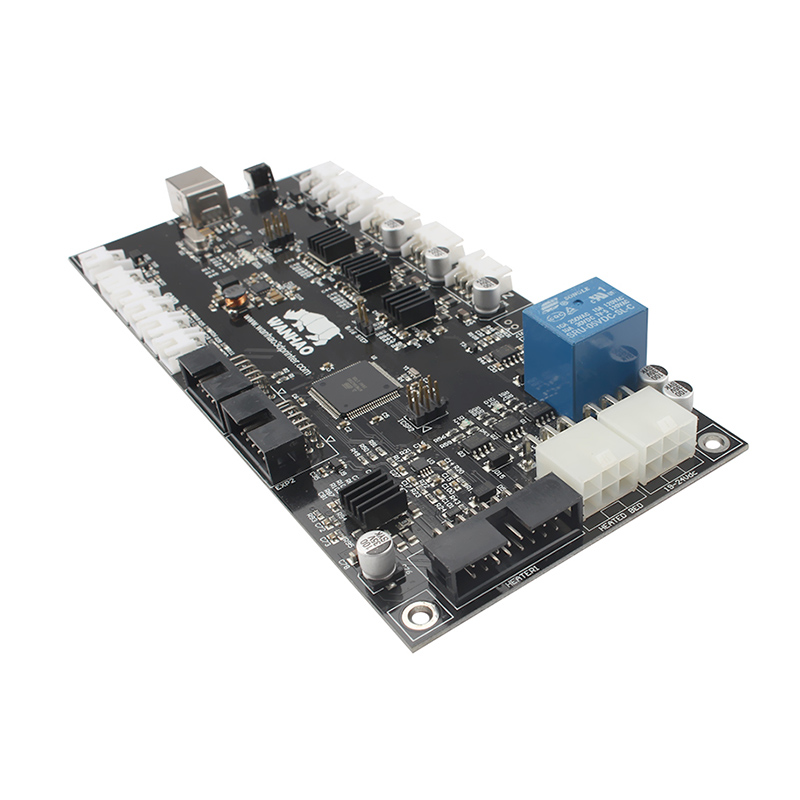

Description: Ultimaker 2 main board is based on ATmega 2560+16U2 main chip platform. It integrates 5-way A4988 stepper driver circuit on the board, the interface board integrates SD card slot + code navigation key + LCD display, A4988 stepper driver circuit, and the interface board integrates SD card slot + code navigation key + LCD display, firmware, support single or double print head printing
Features:
1. Based on MEGA 2560, the board solution has higher stability
2. Two heating ends, support two-color printing (the maximum operating temperature depends on the material of the thermal head)
3. Support hot bed (the maximum current does not exceed 9A, and it is recommended that the temperature be controlled below 100°C)
4. Power supply: 19-24V DC (notebook power supply or switching power supply can be used)
5. Three-way temperature sensor (PT100, -200-650°C), using Texas Instruments INA826 special chip, with higher precision and strong anti-interference ability
6. Three-way limit switch, default reset position 0, default construction size: 230*225*205
7. High scalability, reserve one ANALOG IN, and other idle I/0 ports are also reserved for pin headers.
Can be extended by users
8. Two-way Safety switch (can be connected to smoke sensors, etc. to prevent safety accidents)
9. Three-way fan interface: adjustable fan interface (J14, FAN PWM, 24V), 5V fan (J34, FAN 5V), 24V fan (J20, FAN 19-24V)
10. Dimmable LED interface (J15, LED PWM, 24V)
Package Contents:
Printer Motherboard X1
| Color |
Black |
|---|
